You like to climb and go on big tours, you prefer a ski to dominate in steep, powder, ice, crunchy and chunky. You don’t know what the day is going to give you as challenges, the JAEGER will help you everywhere and in all conditions.
The JAEGER is an all-in-one ULTRALIGHT mountain-machine, a ski allrounder for touring and multi terrain skiing. It is easy to handle and extremely versatile to all snow conditions. The CARBON ultra-lightness makes it sprightly and energetic.
The long camber makes it steady and dominating. The long and high nose tip lets the ski arise and float on the ski and permits you to lean more forward or to stay equilibrated NO MORE LEANING BACK. Having the gravity of your body balanced and centered helps you save a lot of energy and permits you additional reactivity.
Anything that can happen in the mountain is good for you and your ski will handle any situation. The long camber guarantees a steady curves and minimal disturbances when going fast.
Is a real mountain machine for climbing and ski-mountaineering. A strong mountain-tool to go on any expedition, and to ski steady and safe downhill, ensuring all necessary attributes for the steep and fast. Being ultra-light, the ski is shifted and displaced easily which makes it extremely energetic and interactive.
The ski is vivid and follows your movements instantaneously, maximal precision and reactivity in the snow. The ski is made for a climber that demands a snow-multi-tool, it handles any situation and provides outstanding security.
– Uphill oriented [touring-elevation-exploration = ELEPLORE]
– Very well suited for long climbs and tours
– Mutant ski, versatile off-piste and on-piste, one for all ski, good on any snow conditions
– Extremely light, precise in the curves, grip in the steep.
– Camber gives substantial contact with the snow
– Bottom sheet pro quality race level with 15% carbon [ISOSPORT 7500]
– High rising super nose spatula minimizing the risk to plunge into the snow
– Pro components, tail shock absorber, binding inlays, steel race edges
– Pro-flex and stiff-torsion, enhanced by vibration absorbing technology
The NEOTERIC lets you feel the complete ski from tip to tail at all times, it has more surface that is in contact with the snow consequently providing supplementary stability enabling higher speed, keeping the ski steady.
The ski, in combination of the ULTRALIGHT CARBON FIBER CONSTRUCTION, is extremely light and permits you to change your ski position any instant.
The carbon intensifies this featherweight ski feeling while the aramid fibers bring back the natural balance and comfortable touch. Turns come even and regular.
The extensive surface contact generally guarantees a domination of snow. The PRO-FLEX has been engineered to accentuate the neoteric camber giving feeling that is evolutionary. Any snow or mountain is welcome always having an agile, bustling and reactive ski experience with immense grip and control.
The ski is made for dedicated, proactive, energetic skiers. The neoteric has early and proportional high front rise that eliminates the tip plunging in the snow, permitting you to ski relaxed at midpoint.

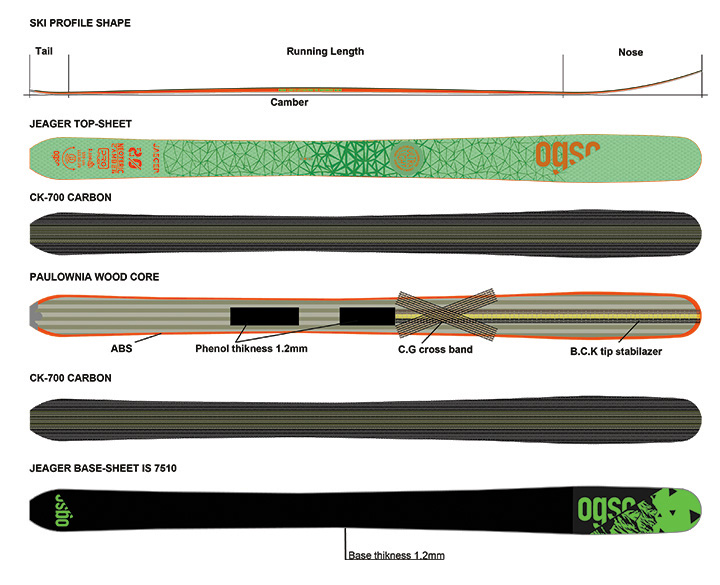

CONSTRUCTED with one layer of carbon-aramid fiber on top a paulownia wood core and underneath one layer of carbon-aramid fiber. Strengthened in the upper middle and below the foot by an additional inlet of fiberglass, two phenol plates inlayed to reinforce the screws of the bindings, an X-tape of newest carbon fiber and a ribbon of carbon-Kevlar in the tip. Manufactured where all ﬁber-layers, above and below, completely traverse the ski covering the sidewalls, this technic adds a lot of strength. Carbon, when mixed with aramid fibers remains extremely light but manages to absorb a high percentage of vibrations.
|Jaeger 80 NEOTERIC CAMBER ULTRALIGHT|
|Total Flat Length (cm)||156||164||172||180||188|
|Width Measures: |
Front, Middle,Back (mm)
|Radius Average (m)||14||15||16||18||20|
|Radius Center (m)||12||13||14||16||18|
|Nose Rise Length (mm)||300||300||300||300||300|
|Tail Length (mm)||80||80||80||80||80|
|Front Rocker Length (mm)||NO ROCKER|
|Back Rocker Length (mm)|
|Running Length (mm)||1180||1260||1340||1420||1500|
|Camber Height (mm)||5||5||5||5||5|
|Nose Height (mm)||51||51||51||51||51|
|Tail Height (mm)||9||9||9||9||9|
|Middle Boot From Tail (mm)|
including tail protection (mm)
01BASE SHEET IS 7510
• Black carbon 10-15%
• Made of premium crosslink polyethylene.
• Good abrasion resistance, very low stress level.
• Modified with wax for better gliding.
The steel racing edge provides smooth flex and minimal friction resistance.
The main characteristics of stainless steel are as follows:
• High durability
• Good ductility
• Optimal gliding behaviour
• Improved adhesion
• High mechanical strength
Thin rubber used between the metal edge and fiberglass layers to minimize shearing-induced delamination.
Equalising temperature-related expansion and differing stress-strain coefficients.
Suitability for use over a wide temperature range.
Vibration damping up to the point of component decoupling.
Carbon fibers or carbon fibres are fibers about 5–10 micrometres in diameter and composed mostly of carbon atoms.
Carbon fibers have several advantages such as:
• High stiffness,
• High tensile strength,
• Low weight,
• High chemical resistance,
• High temperature tolerance and low thermal expansion.
Its main use is to serve as a reinforcement in composite materials, which makes it possible to obtain parts having good mechanical properties while being significantly lighter than metal parts.
These properties have made carbon fiber very popular in aerospace, civil engineering, military, and motorsports, along with other competition sports.
0507FIBER GLASS 60-24
E-glass fibre products are particularly resistant to abrasion and vibration and have excellent flexibility. The glass thread has a higher specific resistance (tensile strength/volumetric mass) than that of steel. This feature makes it possible to develop glass threads that reinforce high performance composites.
The main characteristics of Fiberglass are as follows:
• Good resistance to abrasion and vibrations
• Excellent dielectric strength
• Excellent dimensional stability
09TOP SHEET 5275
The main characteristics of polyamides are :
• Resistance to aging over long periods.
• High mechanical strength and high rigidity.
• Functional tenacity even at low temperatures.
• Excellent dielectric properties.
• Good resistance to abrasion.
10PHENOL REINFORCEMENT FOR BINDING
In this material, the high-strength papers are impregnated with phenolic resins and compressed into sheets of durable, durable and reactive material.
This material is characterized by its excellent mechanical properties to hold the srews in place.
11VIBRATION & CRACKING REDUCER
BAND(basalt – fiber+carbon-fiber + aramid fiber)
The unidirectional ribbon is composed from a carbon frame that surrounds a large basalt and kevlar fiber core in a continuous weft.
The Carbon frame provides:
• High stiffness
• High tensile strength
• Excellent impact resistance
The Basalt & Kevlar core provides:
• Excellent dielectric insulation
• High modulus of elasticity
• Excellent vibration damping
CROSS-BAND(carbon fiber + fiberglass)
The ribbon is unidirectional carbon fiber with continuous weft. It is a light and open reinforcement.
• Narrow ribbons
• Excellent alignment of fibers
• Less crimped with good mechanical properties at 0°
• Ensures the rigidity and stability of the parts
13SIDE WALL ABS
- Especially designed for winter sport applications.
- Charpy impact strength notched: +23 C°/-25C°
- ISO DUR ID1000-147
14HEEL SHOCK ABSORBER
The material we use is ELASTOLLAN R1000 from BASF.
Glass fibre reinforced thermoplastic Polyester-Polyurethane-Elastomer with exceptional properties, very
high impact resistance, high modulus with at the same time elasticity, low coefficient of thermal expansion
comparable with steel and aluminium.
• Modulus of elasticity – tensile test : 1000MPa
• Density : 1.36g/cm
• Hardness : 60 Shore D
• Glass-fiber content : 20%
• Tensile strength : 50MPa
• Impact + notch strength : +23 / -30
Injected by Injection 74
Racing universal wax 500G orange.
Ski wax improves the coefficient of friction performance under varying snow conditions.
Universal 500G designed to match with the varying properties of snow, including crystal type and size, and moisture content of the snow surface, which vary with temperature of the snow.
Bio Based resin is outcoming from the latest innovations in bio-based chemistry.
Bio Based resin is produced with a high content of carbon from plant origin.
The bio-based Carbon content of our supplier’s system is certified by an independent laboratory using Carbon 14 measurements (ASTM D6866 or XP CEN/TS 16640)
This is a significant technological advance on the following points: Clarity, colour, performances and guarantees of industrial tonnages availability.
