COUTURIER 100 NEO UL

NEOTERIC

CARBON ULTRA LIGHT

couturier-absprint

« Supertramp »

Sizes: 162 / 170 / 178 / 186 / 194

€ 700

Recommended Retail Price

neoteric-camber-ultra-light-area-of-use

DESCRIPTION

12-couturier-logo

[touring-freeride-powder-shredder]

You like to climb and go on big tours, you prefer a fat ski to surf the powder in high speeds, you enjoy shredding downhill in steady curves, the COUTURIER will take you to new limits.

The COUTURIER is a large ULTRALIGHT powder-sweeper, a ski for touring and shredding. It is easy to handle and extremely versatile to all snow and mountain conditions.

The CARBON ultra-lightness makes it sprightly and energetic. The long camber makes it steady and dominating.

The long and high nose tip lets the ski arise and float on the ski and permits you to lean more forward or to stay equilibrated NO MORE LEANING BACK. Having the gravity of your body balanced and centred helps you save a lot of energy and permits you additional reactivity. A surf feeling experience that is incredible.

The long camber guarantees a steady curves and minimal disturbances when going fast.

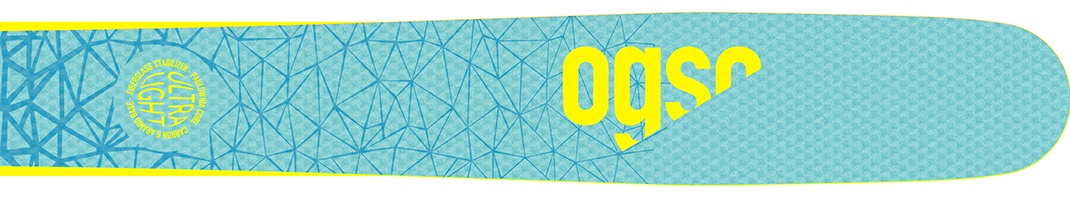

couturier-upper-part

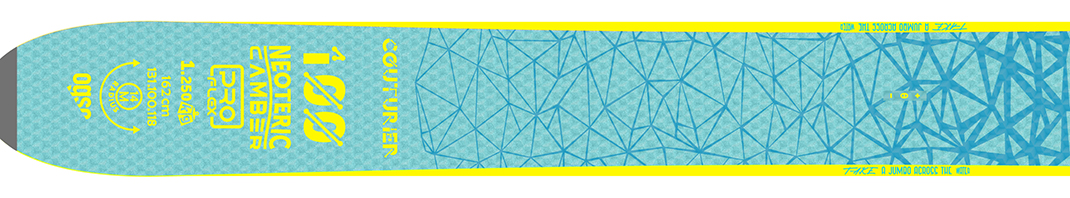

couturier-lower-part

GENERAL INFORMATION

Neoteric Ultralight series are a real mountain machines for climbing and ski-mountaineering

Is a real mountain machine for climbing and ski-mountaineering. A strong mountain-tool to go on any expedition, and to ski steady and safe downhill, ensuring all necessary attributes for the steep and fast. Being ultra-light, the ski is shifted and displaced easily which makes it extremely energetic and interactive.

The ski is vivid and follows your movements instantaneously, maximal precision and reactivity in the snow. The ski is made for a climber that demands a snow-multi-tool, it handles any situation and provides outstanding security.

– Uphill oriented [touring-elevation-exploration = ELEPLORE]
– Very well suited for long climbs and tours
– Mutant ski, versatile off-piste and on-piste, one for all ski, good on any snow conditions
– Extremely light, precise in the curves, grip in the steep.
– Camber gives substantial contact with the snow
– Bottom sheet pro quality race level with 15% carbon [ISOSPORT 7500]
– High rising super nose spatula minimizing the risk to plunge into the snow
– Pro components, tail shock absorber, binding inlays, steel race edges
– Pro-flex and stiff-torsion, enhanced by vibration absorbing technology

The NEOTERIC lets you feel the complete ski from tip to tail at all times, it has more surface that is in contact with the snow consequently providing supplementary stability enabling higher speed, keeping the ski steady.

The ski, in combination of the ULTRALIGHT CARBON FIBER CONSTRUCTION, is extremely light and permits you to change your ski position any instant.

The carbon intensifies this featherweight ski feeling while the aramid fibers bring back the natural balance and comfortable touch. Turns come even and regular.

The extensive surface contact generally guarantees a domination of snow. The PRO-FLEX has been engineered to accentuate the neoteric camber giving feeling that is evolutionary. Any snow or mountain is welcome always having an agile, bustling and reactive ski experience with immense grip and control.

The ski is made for dedicated, proactive, energetic skiers. The neoteric has early and proportional high front rise that eliminates the tip plunging in the snow, permitting you to ski relaxed at midpoint.

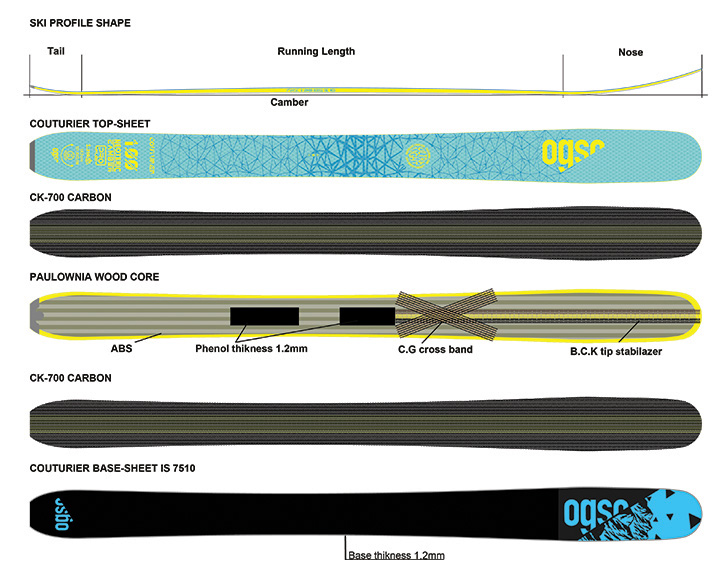

CONSTRUCTED with one layer of carbon-aramid fiber on top a paulownia wood core and underneath one layer of carbon-aramid fiber. Strengthened in the upper middle and below the foot by an additional inlet of fiberglass, two phenol plates inlayed to reinforce the screws of the bindings, an X-tape of newest carbon fiber and a ribbon of carbon-Kevlar in the tip. Manufactured where all fiber-layers, above and below, completely traverse the ski covering the sidewalls, this technic adds a lot of strength. Carbon, when mixed with aramid fibers remains extremely light but manages to absorb a high percentage of vibrations.

ogso-couturier-layers

COMPOSITION & SPECS

All Couturier’s technical details

COMPOSITION

couturier-3d-compo

TECHNICAL SPECIFICATIONS

Couturier  100 NEOTERIC CAMBER ULTRALIGHT
Total Flat Length (cm)162170178186194
Weight (kg)1,251,3251,451,5751,7
Width Measures:
Front, Middle,Back (mm)
130,100,117133,102,119135,104,120138,106,122142,108,125
Radius Average (m)1617202224
Radius Center (m)1415182022
Nose Rise Length (mm)320320320320320
Tail Length (mm)120120120120120
Front Rocker Length (mm)NO ROCKER
Back Rocker Length (mm)
Running Length (mm)11801260134014201500
Camber Height (mm)55555
Nose Height (mm)5858585858
Tail Height (mm)1818181818
Middle Boot From Tail (mm)
including tail protection (mm)
705740775810845

MATERIAL SPECIFICATIONS

UL COMPOSITION
01BASE SHEET IS 7510

www.isosport.com

• Black carbon 10-15%
• Made of premium crosslink polyethylene.
• Good abrasion resistance, very low stress level.
• Modified with wax for better gliding.

02STAINLESS EDGE

www.waelzholz.com

The steel racing edge provides smooth flex and minimal friction resistance.
The main characteristics of stainless steel are as follows:
• High durability
• Good ductility
• Optimal gliding behaviour
• Improved adhesion
• High mechanical strength

03RUBBER

www.haberkorn.ch

Thin rubber used between the metal edge and fiberglass layers to minimize shearing-induced delamination.
Equalising temperature-related expansion and differing stress-strain coefficients.
Suitability for use over a wide temperature range.
Vibration damping up to the point of component decoupling.

0408CARBON FIBER

www.saertex.com

Carbon fibers or carbon fibres are fibers about 5–10 micrometres in diameter and composed mostly of carbon atoms.
Carbon fibers have several advantages such as:
• High stiffness,
• High tensile strength,
• Low weight,
• High chemical resistance,
• High temperature tolerance and low thermal expansion.
Its main use is to serve as a reinforcement in composite materials, which makes it possible to obtain parts having good mechanical properties while being significantly lighter than metal parts.
These properties have made carbon fiber very popular in aerospace, civil engineering, military, and motorsports, along with other competition sports.

0507FIBER GLASS 60-24

www.saertex.com

E-glass fibre products are particularly resistant to abrasion and vibration and have excellent flexibility. The glass thread has a higher specific resistance (tensile strength/volumetric mass) than that of steel. This feature makes it possible to develop glass threads that reinforce high performance composites.
The main characteristics of Fiberglass are as follows:
• Good resistance to abrasion and vibrations
• Rot-resistant
• Excellent dielectric strength
• Excellent dimensional stability

06PAULOWNIA WOOD CORE

FSC certified forest management.
Paulownia is the wood of the phoenix tree. The paulownia wood is tall and straight. It is the leader among the trees.
Paulownia is one of the lightest woods. It has the unique characteristics of resistance to rot, acid and alkali.

FSC ® Label

09TOP SHEET 5275

www.isosport.com

The main characteristics of polyamides are :

• Resistance to aging over long periods.
• High mechanical strength and high rigidity.
• Functional tenacity even at low temperatures.
• Excellent dielectric properties.
• Good resistance to abrasion.

10PHENOL REINFORCEMENT FOR BINDING

www.isosport.com

In this material, the high-strength papers are impregnated with phenolic resins and compressed into sheets of durable, durable and reactive material.
This material is characterized by its excellent mechanical properties to hold the srews in place.

11VIBRATION & CRACKING REDUCER

BAND(basalt – fiber+carbon-fiber + aramid fiber)

chomarat-logo

www.chomarat.com

The unidirectional ribbon is composed from a carbon frame that surrounds a large basalt and kevlar fiber core in a continuous weft.

The Carbon frame provides:

• High stiffness
• High tensile strength
• Excellent impact resistance
The Basalt & Kevlar core provides:
• Excellent dielectric insulation
• High modulus of elasticity
• Excellent vibration damping

12TORSION STABILIZER

CROSS-BAND(carbon fiber + fiberglass)

chomarat-logo

www.chomarat.com

The ribbon is unidirectional carbon fiber with continuous weft. It is a light and open reinforcement.
• Narrow ribbons
• Excellent alignment of fibers
• Less crimped with good mechanical properties at 0°
• Ensures the rigidity and stability of the parts

13SIDE WALL ABS

www.isosport.com

  • Especially designed for winter sport applications.
  • Charpy impact strength notched: +23 C°/-25C°
  • ISO DUR ID1000-147
14HEEL SHOCK ABSORBER


www.injection74.com

The material we use is ELASTOLLAN R1000 from BASF.
Glass fibre reinforced thermoplastic Polyester-Polyurethane-Elastomer with exceptional properties, very
high impact resistance, high modulus with at the same time elasticity, low coefficient of thermal expansion
comparable with steel and aluminium.
• Modulus of elasticity – tensile test : 1000MPa
• Density : 1.36g/cm
• Hardness : 60 Shore D
• Glass-fiber content : 20%
• Tensile strength : 50MPa
• Impact + notch strength : +23 / -30
Injected by Injection 74

Certified

  basf-logo-8E000DD407-seeklogo.com

15VOLA WAX

www.vola.fr

Racing universal wax 500G orange.
Ski wax improves the coefficient of friction performance under varying snow conditions.
Universal 500G designed to match with the varying properties of snow, including crystal type and size, and moisture content of the snow surface, which vary with temperature of the snow.

16RESIN

www.sicomin.com

Bio Based resin is outcoming from the latest innovations in bio-based chemistry.
Bio Based resin is produced with a high content of carbon from plant origin.
The bio-based Carbon content of our supplier’s system is certified by an independent laboratory using Carbon 14 measurements (ASTM D6866 or XP CEN/TS 16640)
This is a significant technological advance on the following points: Clarity, colour, performances and guarantees of industrial tonnages availability.

Certified

SKI BINDING MOUNTING INSTRUCTIONS

couturier-binding instruction
